• 고무&플라스틱 설비

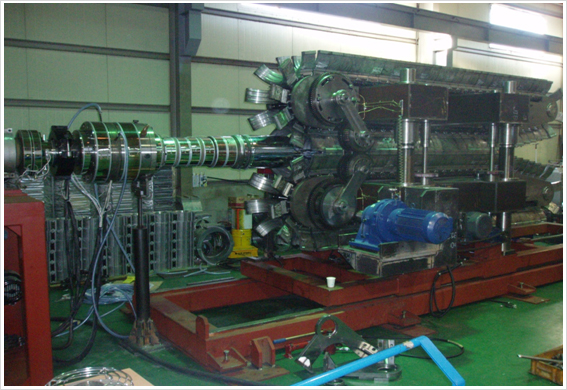

DC PIPE EXTRUSION LINE

  • DC PIPE EXTRUSION LINE

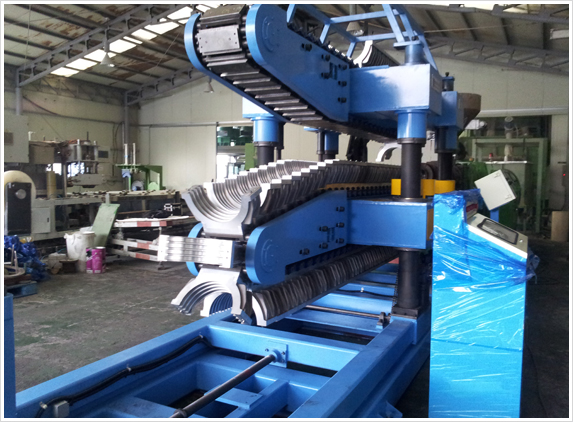

  • SPECIFICATION OF CORRUGATER
    CATERPILLER TYPE UP DOWN MOLDING SYSTEM
    FEEDING POWER 5TON~6.5TON(MAX.)
    LINE SPEED 0.2~2.0M/min (SPEED CONTROL)
    PERSSING METHOD SCREW TENSION PRESSING ADJUSTING
    MAIN MOTOR INVERTER 5.5KW CYCLO MOTOR
  • DC PIPE EXTRUSION LINE

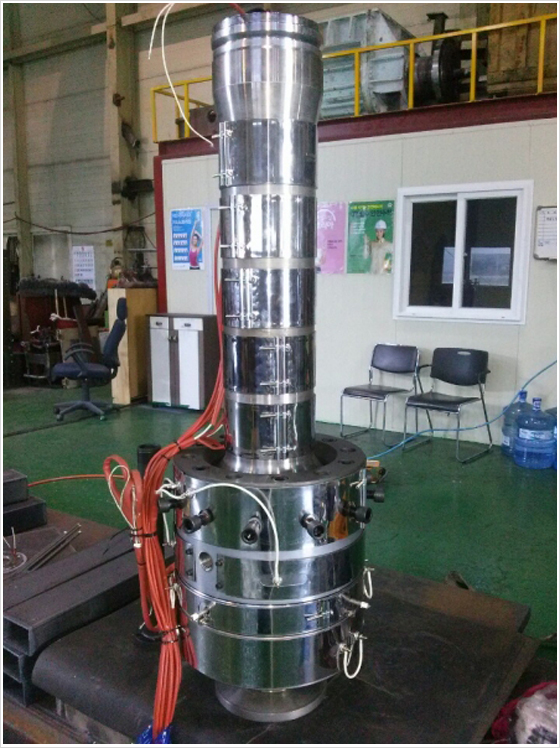

  • SPECIFICATION OF DIES
    AIR BLOWER TYPE
    PRODUCTION SIZE Φ450mm, Φ500mm, Φ600mm
    HEATING ZONE 5-ZONE (8KW x 5 ZONE = 40KW)
    HEATER TYPE BAND HEATER
    INSIDE HEATER ZONE 3-ZONE (3KW x 3 ZONE = 9KW)
    INSIDE HEATER TYPE AL-CASTING & PIPE TYPE
  • DC PIPE EXTRUSION LINE

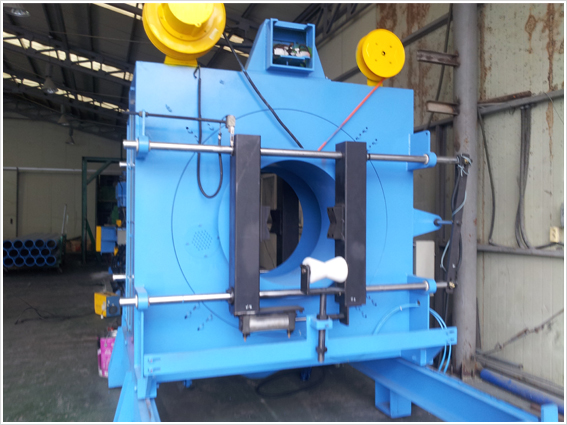

  • SPECIFITION OF CUTTING M/C
    ROTARY 360° ROTATION TYPE
    PRODUTION SIZE Φ300mm ~ Φ400mm
    CAMPING SCREW FEED PRESSING TYPE
    DRUM DRIVE MOTER 2.2KW x 4P (GEARED MOTOR)
    KNIFE ADJUSTING MOTOR 0.75 x 4P (GEARED MOTOR)
    FRAME FEEDING SYSTEM 1.5KW GEARED MOTER
  • DC PIPE EXTRUSION LINE

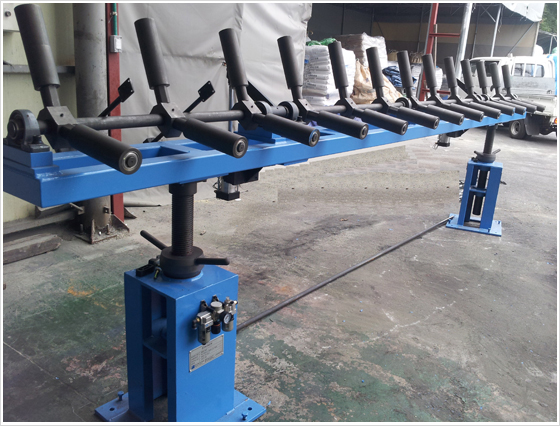

  • SPECIFICATION OF STACKER
    CAM ROTATION TYPE
    PRODUTION SIZE Φ300mm ~ Φ400mm
    Q'TY OF GUIDE ROLLER 16EA
    DIMENSION 950W x 1500H x 5000L
  • DC PIPE EXTRUSION LINE
  • DC PIPE DIE'S 150~60A
  • DC PIPE EXTRUSION LINE

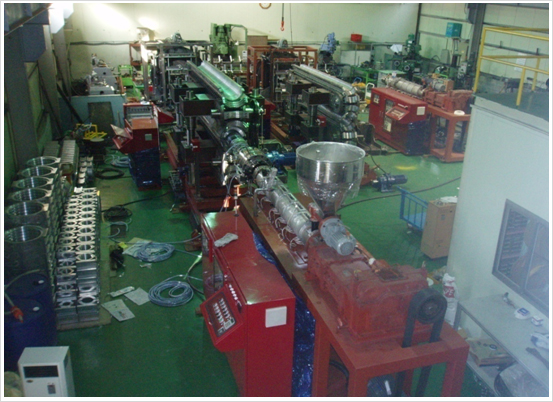

  • SPECFICATION OF PIPE PLANT
    TWIN EXTRUDER Φ90mm(55KW)
    CORRUGATER UP, DOWN MOLDING SYSTEM
    DIE UNIT AIR BLOWER TYPE
    COOLING TANK VACCUM & WATER SPRAY SYSTEM
    CUTTER M/C HYD KNIFE CUTTER
    STACKER PNEUMATIC SYSTEM
